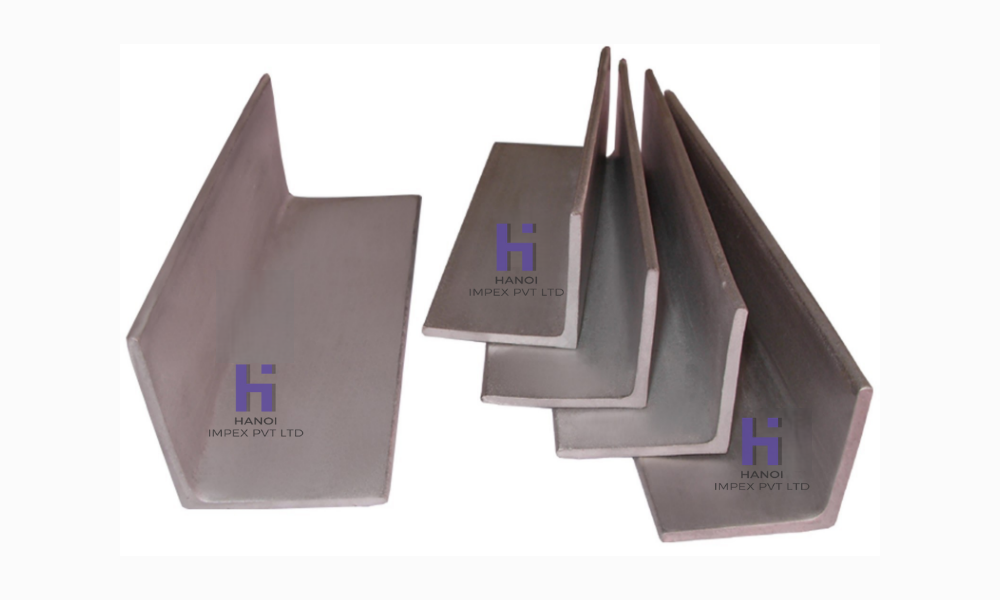

Equal Angle Bar
Specification
Equal angle bars represent a broad product line of bar-shaped building elements. They do have parallel legs and their tolerances are defined by ASTM A 484, Angle bar is the most widely used structural steel by the construction industry because of its very economical cost. It is manufactured by rolling pre-heated blooms to form an angle shape. angle bars are produced conforming to ASTM A36 specification.
Equal Angle Steel Sizes (Length(6 to 12mtr))
| Size(mm) | Thickness(mm) | Weight(Kg/m) | Size(mm) | Thickness(mm) | Weight(Kg/m) |
| 20 | 3 | 0.889 | 110 | 10 | 16.69 |
| 20 | 4 | 1.145 | 110 | 12 | 19.782 |
| 25 | 2 | 0.753 | 110 | 14 | 22.809 |
| 25 | 4 | 1.459 | 120 | 8 | 14.88 |
| 30 | 2 | 0.922 | 120 | 10 | 18.37 |
| 30 | 3 | 1.373 | 120 | 12 | 21.666 |
| 30 | 4 | 1.786 | 120 | 10 | 18.37 |
| 40 | 3 | 1.852 | 120 | 12 | 21.66 |
| 40 | 4 | 2.422 | 125 | 8 | 15.504 |
| 40 | 5 | 2.976 | 125 | 10 | 19.133 |
| 45 | 4 | 2.736 | 125 | 14 | 26.193 |
| 45 | 5 | 3.369 | 130 | 10 | 19.8 |
| 50 | 3 | 2.332 | 130 | 12 | 23.6 |
| 50 | 4 | 3.059 | 130 | 14 | 27.2 |
| 50 | 5 | 3.77 | 130 | 16 | 30.9 |
| 56 | 6 | 4.465 | 140 | 10 | 21.488 |
| 56 | 4 | 3.446 | 140 | 12 | 25.522 |
| 60 | 5 | 4.251 | 140 | 14 | 29.49 |
| 60 | 5 | 4.52 | 140 | 16 | 33.393 |
| 63 | 6 | 5.42 | 150 | 9 | 20.7 |
| 63 | 4 | 3.907 | 150 | 10 | 23 |
| 63 | 5 | 4.822 | 150 | 12 | 27.3 |
| 63 | 8 | 7.469 | 150 | 14 | 31.6 |
| 63 | 10 | 9.151 | 150 | 15 | 33.8 |
| 65 | 5 | 5 | 160 | 10 | 24.729 |
| 65 | 6 | 5.91 | 160 | 12 | 29.391 |
| 65 | 8 | 7.66 | 160 | 14 | 33.987 |
| 70 | 5 | 5.397 | 160 | 16 | 38.581 |
| 70 | 6 | 6.406 | 175 | 12 | 31.8 |
| 70 | 8 | 373 | 175 | 15 | 39.4 |
| 75 | 5 | 5.818 | 180 | 12 | 33.159 |
| 76 | 6 | 6.905 | 180 | 14 | 38.382 |
| 75 | 8 | 9.03 | 180 | 18 | 48.634 |
| 75 | 10 | 11.089 | 200 | 14 | 42.894 |
| 75 | 9 | 10.06 | 200 | 15 | 45.3 |
| 80 | 5 | 6.211 | 200 | 16 | 48.68 |
| 80 | 6 | 7.376 | 200 | 18 | 54.401 |
| 80 | 7 | 8.0525 | 200 | 20 | 60.056 |
| 80 | 8 | 9.685 | 200 | 24 | 71.168 |
| 80 | 10 | 11.874 | 200 | 25 | 73.63 |
| 90 | 6 | 8.35 | 220 | 16 | 53.901 |
| 90 | 7 | 9.656 | 220 | 18 | 60.25 |
| 90 | 10 | 13.476 | 220 | 20 | 66.533 |
| 90 | 12 | 15.94 | 220 | 22 | 72.751 |
| 100 | 6 | 9.366 | 220 | 24 | 78.902 |
| 100 | 7 | 10.83 | 220 | 26 | 84.987 |
| 100 | 8 | 12.276 | 250 | 18 | 68.956 |
| 100 | 10 | 15.12 | 250 | 20 | 76.18 |
| 100 | 12 | 17.898 | 250 | 24 | 90.433 |
| 100 | 16 | 23.257 | 250 | 25 | 93.77 |
| 110 | 7 | 11.928 | 250 | 26 | 97.461 |
| 110 | 8 | 13.532 | 250 | 28 | 104.422 |
| - | - | - | 250 | 30 | 111.318 |
| - | - | - | 250 | 32 | 118.149 |
