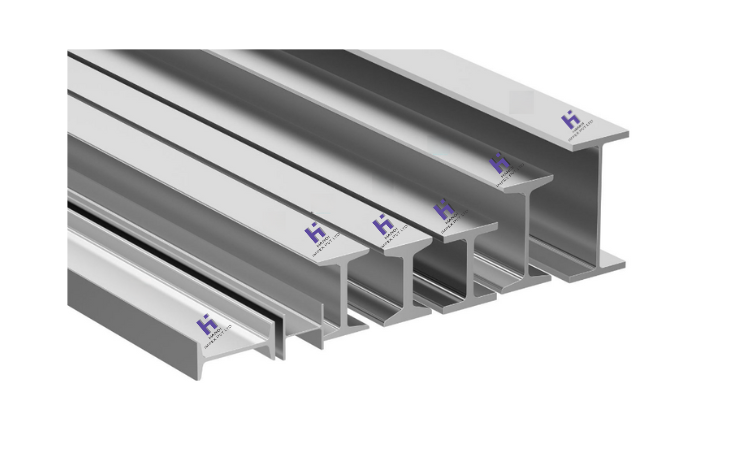

IPE Beams
Specification
| Nominal Size “U” | Dimension | Cross –section Aera (cm2) | ||||
| h | b | s | t | r | ||
| IPE AA-100 IPE A-100 IPE-100 |
97.6 98 100 |
55 55 55 |
3.6 3.6 4.1 |
4.4 4.7 5.7 |
7 7 7 |
8.56 8.76 10.32 |
| IPE AA-120 IPE A-120 IPE-120 |
117 117.6 120 |
64 64 64 |
3.8 3.8 4.4 |
4.8 5.1 6.3 |
7 7 7 |
10.65 11.03 13.21 |
|
IPE AA-140 IPE A-140 IPE-140 |
136.6 137.4 140 |
73 73 73 |
3.8 3.8 4.7 |
5.2 5.6 6.9 |
7 7 7 |
12.80 13.39 16.43 |
|
IPE AA-160 IPE A-160 IPE-160 |
156.4 157 160 |
82 82 82 |
4 4.0 5.0 |
5.6 5.9 7.4 |
7 9 9 |
15.68 16.18 20.09 |
|
IPE AA-180 IPE A-180 IPE-180 |
176.4 177 180 |
91 91 91 |
43 4.3 5.3 |
6.2 6.5 8.0 |
9 9 9 |
19.03 19.58 23.95 |
|
IPE AA-200 IPE A-200 IPE-200 |
196.4 197 200 |
100 100 100 |
4.5 4.5 5.6 |
6.7 7.0 8.5 |
12 12 12 |
22.87 23.47 28.48 |
Chemical Composition
| Steel Grade | Thickness/ mm | C (%)< | Si (%)< | Mn (%)< | P (%)< | S(%)< | others (%) |
| St 37-2 | ≤16 >16-25 |
0.17 0.20 |
- - |
1.40 1.40 |
0.045 0.045 |
0.045 0.045 |
N ≤ 0.009 N ≤ 0.009 |
| St 52-3 | ≤30 > 30 |
0.20 0.22 |
0.55 0.55 |
1.60 1.60 |
0.040 0.040 |
0.040 0.040 |
N ≤ 0.009 N ≤ 0.009 |
| S235JR | ≤16 > 16-25 |
0.17 0.20 |
- - |
1.40 1.40 |
0.045 0.045 |
0.045 0.045 |
N ≤ 0.009 N ≤ 0.009 |
| S355JR | - | 0.24 | 0.55 | 1.60 | 0.045 | 0.045 | N ≤ 0.009 |
Mechanical Capability
| Steel Grade | Tensile Strength for Thickness/mmòb /MPa ≥ | |||
| <3 | >3-100 | <100-150 | >150-120 | |
| St 37-2 | - | - | - | - |
| St 52-3 | 510-680 | 490-630 | 470-630 | 450-630 |
| S235JR | - | - | - | - |
| S355JR | 510-680 | 490-630 | 470-630 | 450-630 |
